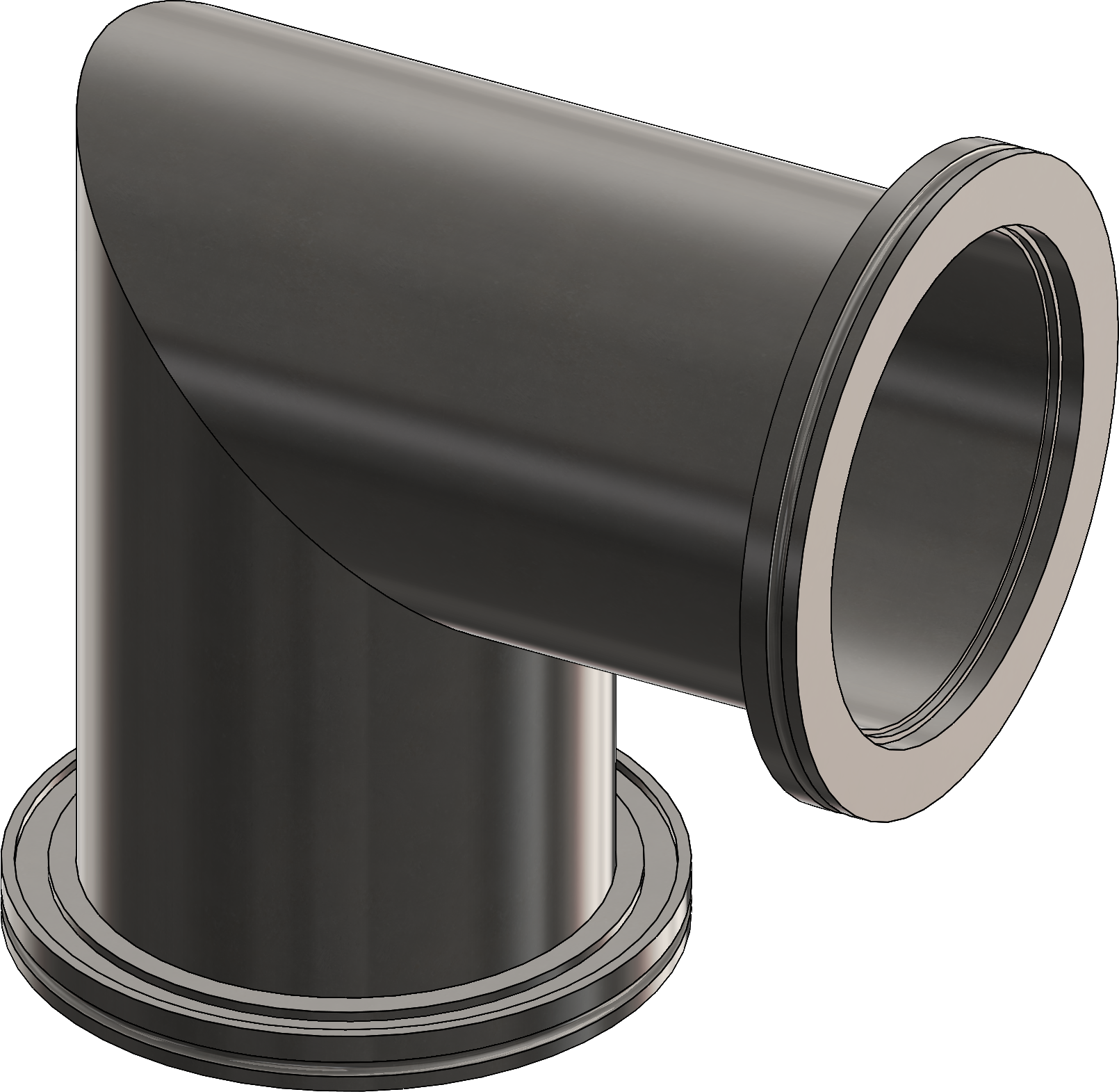

ISO 90° elbow, mitered
HIS ISO components are designed to International Standards Organization specifications and are made of 304 stainless steel (316/316L available upon request). Standard matte finish.
Measurements are listed in inches (mm). Custom lengths available upon request.
| Part No. | Tube Size | A |
|---|---|---|
| VC-IS-63EL90MTR | 2.50 (63.5) | 3.25 (82.6) |
| VC-IS-80EL90MTR | 3.00 (76.2) | 3.50 (88.9) |
| VC-IS-100EL90MTR | 4.00 (101.6) | 5.12 (130) |
| VC-IS-160EL90MTR | 6.00 (152.4) | 5.25 (133) |
