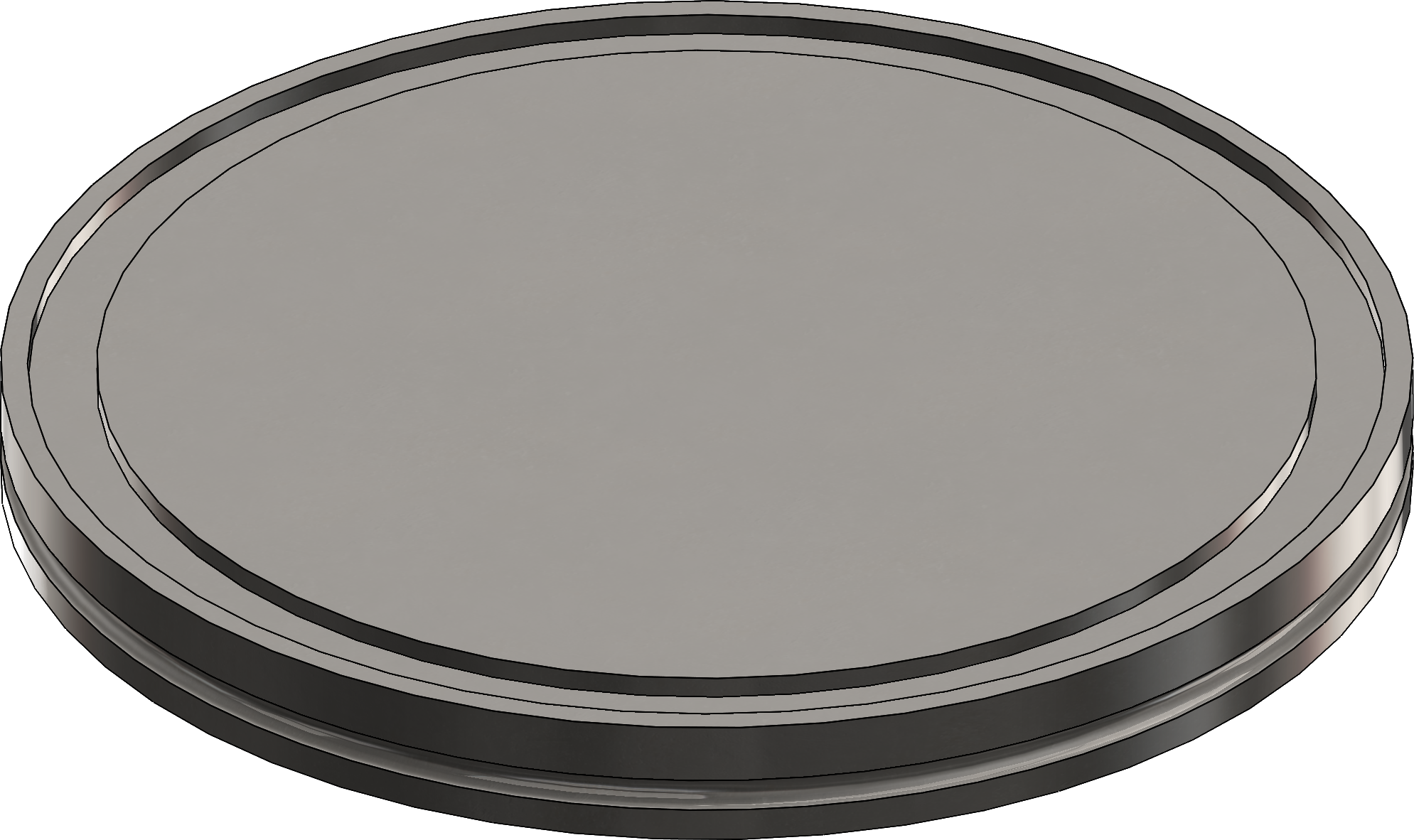

ISO Blank Flange
HIS ISO components are designed to International Standards Organization specifications and are made of 304 stainless steel (316/316L available upon request). Standard matte finish. The modular design of our ISO blank flange is used to cap various ends within vacuum systems.
Measurements are listed in inches (mm).
| Part No. | Flange Size | A | B | C |
|---|---|---|---|---|
| VC-IS-63BF | 2.50 (63.5) | 3.74 (95) | 0.47 (12) | 2.76 (70) |
| VC-IS-80BF | 3.00 (76.2) | 4.33 (110) | 0.47 (12) | 3.27 (83) |
| VC-IS-100BF | 4.00 (101.6) | 5.12 (130) | 0.47 (12) | 4.02 (102) |
| VC-IS-160BF | 6.00 (152.4) | 7.09 (180) | 0.47 (12) | 6.02 (153) |
| VC-IS-200BF | 8.00 (203.2) | 9.45 (240) | 0.47 (12) | 8.39 (213) |
| VC-IS-250BF | 10.00 (254) | 11.42 (290) | 0.47 (12) | 10.28 (261) |
| VC-IS-320BF | 12.00 (304.8) | 14.57 (370) | 0.67 (17) | 12.52 (318) |
| VC-IS-400BF | 16.00 (406.4) | 17.72 (450) | 0.67 (17) | 15.75 (400) |
| VC-IS-500BF | 20.00 (508) | 21.65 (550) | 0.67 (17) | 19.72 (501) |
