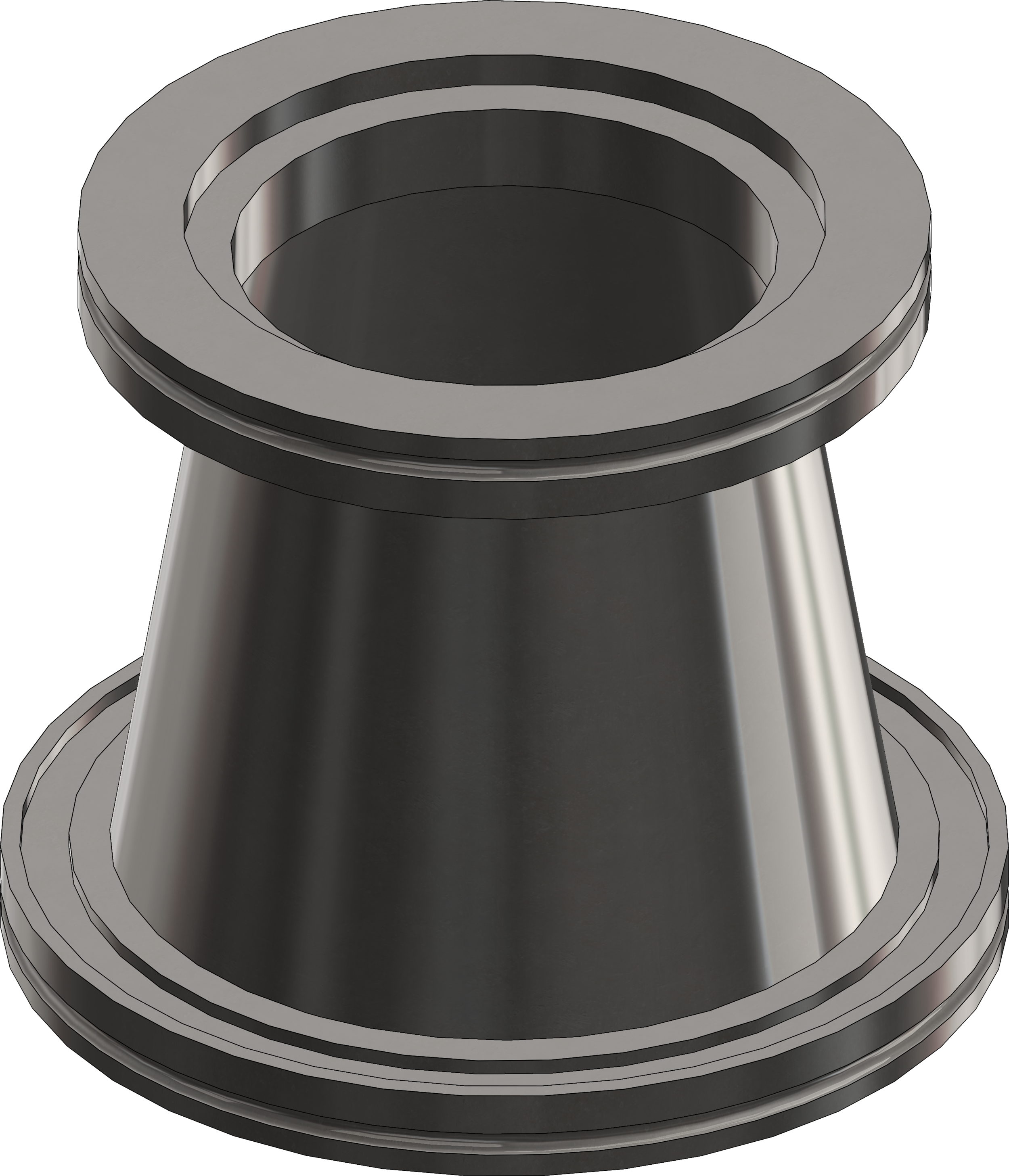

ISO conical reducer, type 4
HIS ISO components are designed to International Standards Organization specifications and are made of 304 stainless steel (316/316L available upon request). Standard matte finish.
Measurements are listed in inches (mm). Custom sizes and lengths available upon request.
| Part No. | Flange Size | Flange 1 | Flange 2 | A |
|---|---|---|---|---|
| VC-IS-80X63RCT4 | 3.00 (76.2) X 2.50 (63.5) | ISO 80 | ISO 63 | 4.13 (104.8) |
| VC-IS-100X63RCT4 | 4.00 (101.6) X 2.50 (63.5) | ISO 100 | ISO 63 | 4.13 (104.8) |
| VC-IS-100X80RCT4 | 4.00 (101.6) X 3.00 (76.2) | ISO 100 | ISO 80 | 4.13 (104.8) |
| VC-IS-160X80RCT4 | 6.00 (152.4) X 3.00 (76.2) | ISO 160 | ISO 80 | 6.00 (152.4) |
| VC-IS-160X100RCT4 | 6.00 (152.4) X 4.00 (101.6) | ISO 160 | ISO 100 | 6.00 (152.4) |
