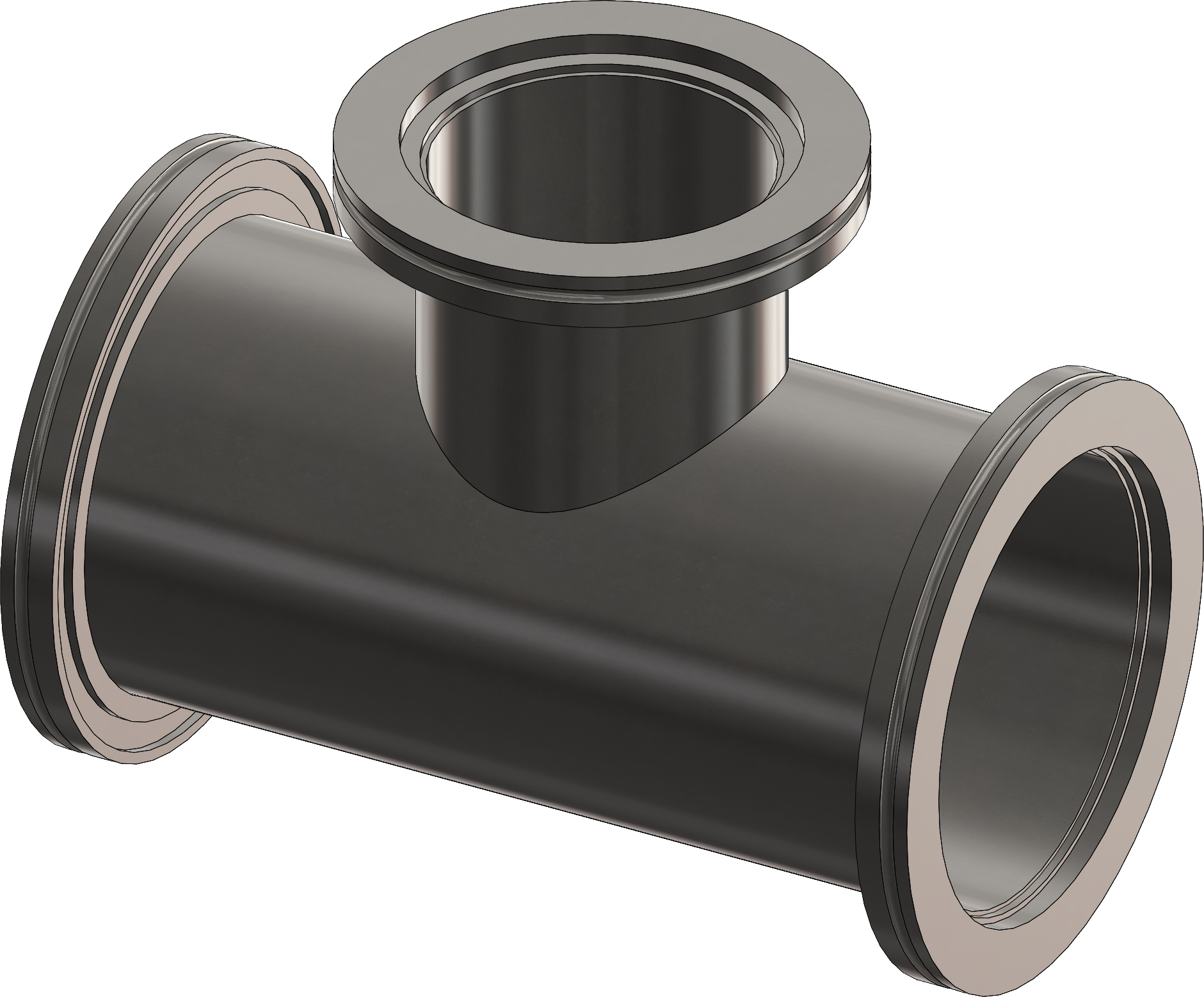

ISO Reducing tee

HIS ISO components are designed to International Standards Organization specifications and are made of 304 stainless steel (316/316L available upon request). Standard matte finish.

Measurements are listed in inches (mm). Custom sizes available upon request.

Part No. Tube Size A B
VC-IS-80X63RT-T13.00 (76.2) X 2.50 (63.5)7.00 (177.8)3.50 (88.9)
VC-IS-100X63RT-T14.00 (101.6) X 2.50 (63.5)8.00 (203.2)4.13 (104.9)
VC-IS-100X80RT-T14.00 (101.6) X 3.00 (76.2)8.00 (203.2)4.13 (104.9)
VC-IS-160X63RT-T16.00 (152.4) X 2.50 (63.5)10.00 (254)5.38 (136.7)
VC-IS-160X80RT-T16.00 (152.4) x 3.00 (76.2)10.00 (254)5.38 (136.7)
VC-IS-160X100RT-T16.00 (152.4) x 4.00 (101.6)10.26 (260.6)5.38 (136.7)
VC-IS-200X63RT-T18.00 (203.2) x 2.50 (63.5)12.00 (304.8)7.38 (187.5)
VC-IS-200X80RT-T18.00 (203.2) x 3.00 (76.2)12.00 (304.8)7.38 (187.5)
VC-IS-200X100RT-T18.00 (203.2) x 4.00 (101.6)12.26 (311.4)7.38 (187.5)
VC-IS-200X160RT-T18.00 (203.2) x 6.00 (152.4)12.74 (323.6)7.38 (187.5)
