ISO rotatable bolt FLANGE
HIS ISO components are designed to International Standards Organization specifications and are made of 304 stainless steel (316/316L available upon request). Standard matte finish.
Measurements are listed in inches (mm). Reduced port available upon request.

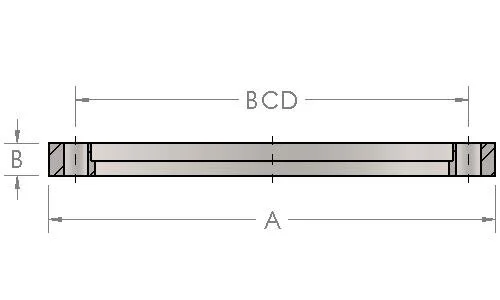

| Part No. | Flange Size | Bolt No. | A | B | BCD | Hole Dia. |
|---|---|---|---|---|---|---|
| VC-IS-63WF250BR | 2.50 (63.5) | 4 | 5.12 (130) | 0.47 (12) | 4.33 (110) | 0.36 (9) |
| VC-IS-80WF300BR | 3.00 (76.2) | 8 | 5.71 (145) | 0.47 (12) | 4.92 (125) | 0.36 (9) |
| VC-IS-100WF400BR | 4.00 (101.6) | 8 | 6.50 (165) | 0.47 (12) | 5.71 (145) | 0.36 (9) |
| VC-IS-160WF600BR | 6.00 (152.4) | 8 | 8.86 (225) | 0.63 (16) | 7.87 (200) | 0.44 (11) |
| VC-IS-200WF800BR | 8.00 (203.2) | 12 | 11.22 (285) | 0.63 (16) | 10.24 (260) | 0.44 (11) |
| VC-IS-250WF1000BR | 10.00 (254) | 12 | 13.19 (335) | 0.63 (16) | 12.20 (310) | 0.44 (11) |
| VC-IS-320WF1200BR | 12.00 (304.8) | 12 | 16.73 (425) | 0.79 (20) | 15.55 (395) | 0.52 (13.5) |
| VC-IS-400WF1600BR | 16.00 (406.4) | 16 | 20.08 (510) | 0.79 (20) | 18.90 (480) | 0.52 (13.5) |
| VC-IS-500WF2000BR | 20.00 (508) | 16 | 24.02 (610) | 0.79 (20) | 22.83 (580) | 0.52 (13.5) |
