ISO single claw clamp
HIS ISO components are designed to International Standards Organization specifications and used to connect various ISO components. Made of aluminum. Standard matte finish.
Measurements are listed in inches (mm).

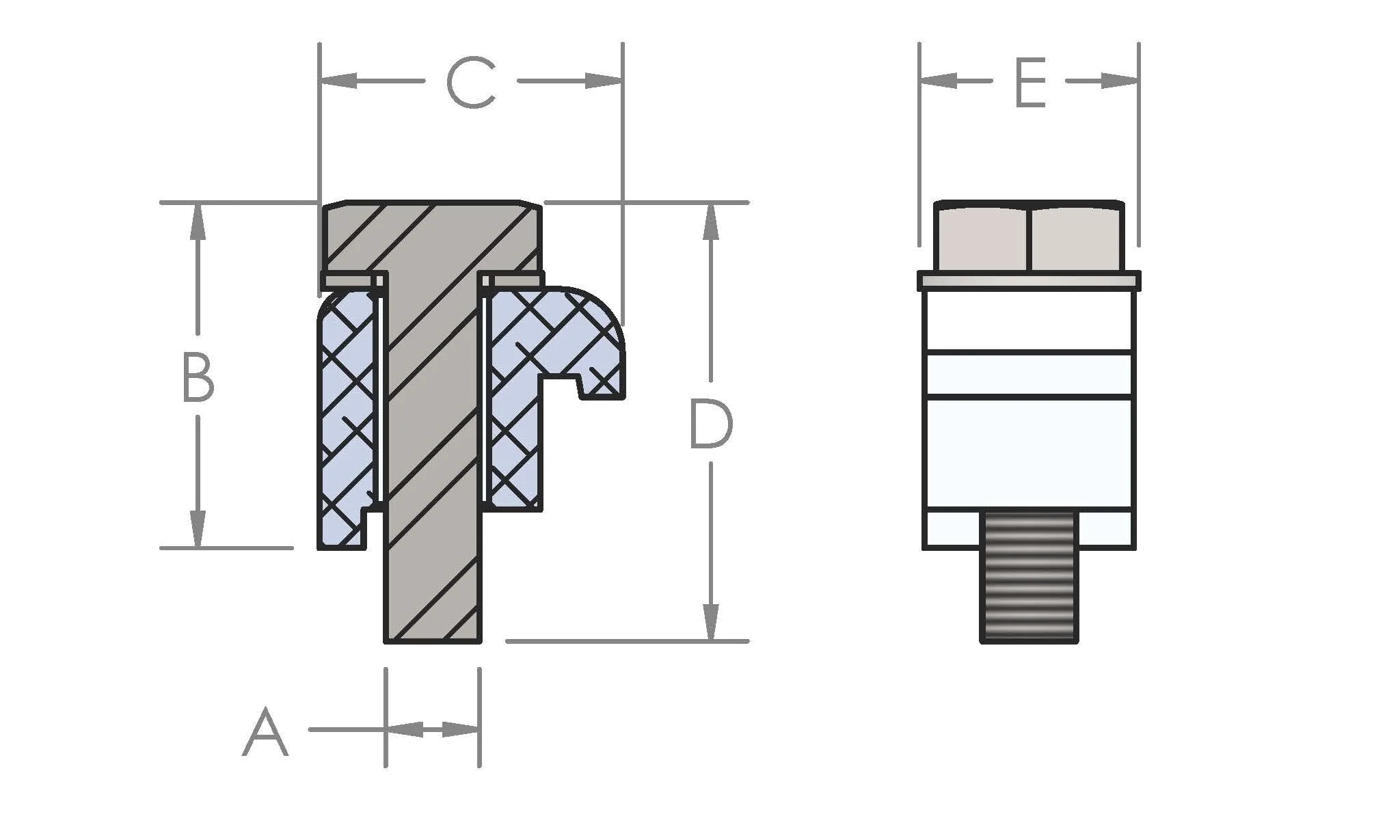

| Part No. | A | B | C | D | E | Fits Flange |
|---|---|---|---|---|---|---|
| VC-IS-100SC | M8 | 1.11 (28.3) | 0.85 (21.5) | 1.57 (39.8) | 0.67 (17) | ISO 63 ISO 80 ISO 100 |
| VC-IS-250SC | M10 | 1.11 (28.3) | 1.08 (27.5) | 1.57 (39.8) | 0.78 (19.9) | ISO 160 ISO 200 ISO 250 |
| VC-IS-500SC | M12 | 1.41 (37.8) | 1.34 (34) | 2.19 (55.8) | 0.93 (23.6) | ISO 320 ISO 400 ISO 500 |
Not recommended for use on heated lines. Torque to 7-10 ft-lbs.
