ISO single claw clamp, 316
HIS ISO components are designed to International Standards Organization specifications and used to connect various ISO components. Made of 316 stainless steel and includes a zinc-plated nut.

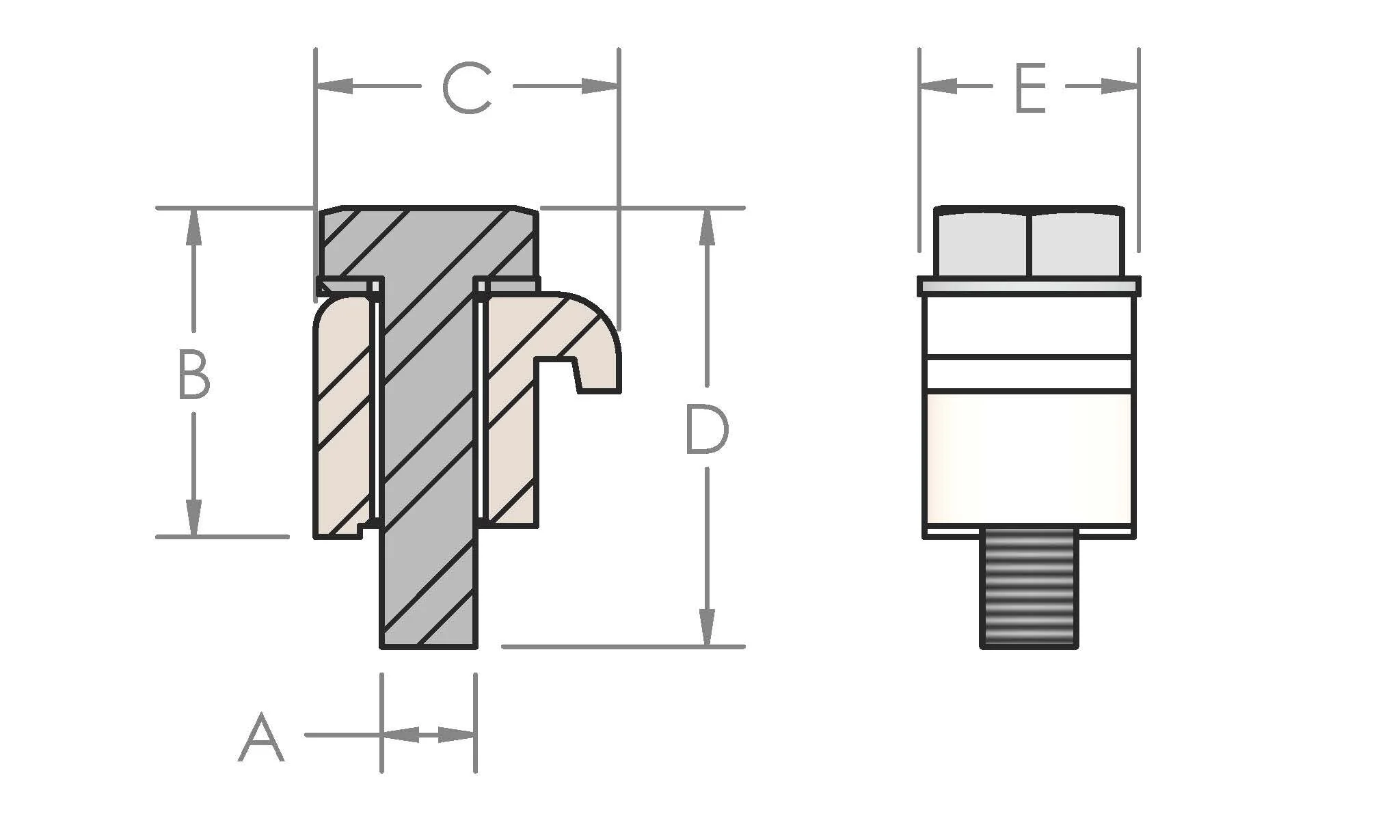

Measurements are listed in inches (mm).
| Part No. | A | B | C | D | E | Fits Flange |
|---|---|---|---|---|---|---|
| VC-IS-100SC-316Z | M8 | 1.09 (27.8) | 0.95 (24) | 1.57 (39.8) | 0.67 (17) | ISO 63 ISO 80 ISO 100 |
| VC-IS-250SC-316Z | M10 | 1.09 (27.8) | 1.08 (27.5) | 1.57 (39.8) | 0.78 (19.9) | ISO 160 ISO 200 ISO 250 |
| VC-IS-500SC-316Z | M12 | 1.41 (35.8) | 1.34 (34) | 2.19 (55.8) | 0.93 (23.6) | ISO 320 ISO 400 ISO 500 |
Torque to 7-10 ft-lbs.
