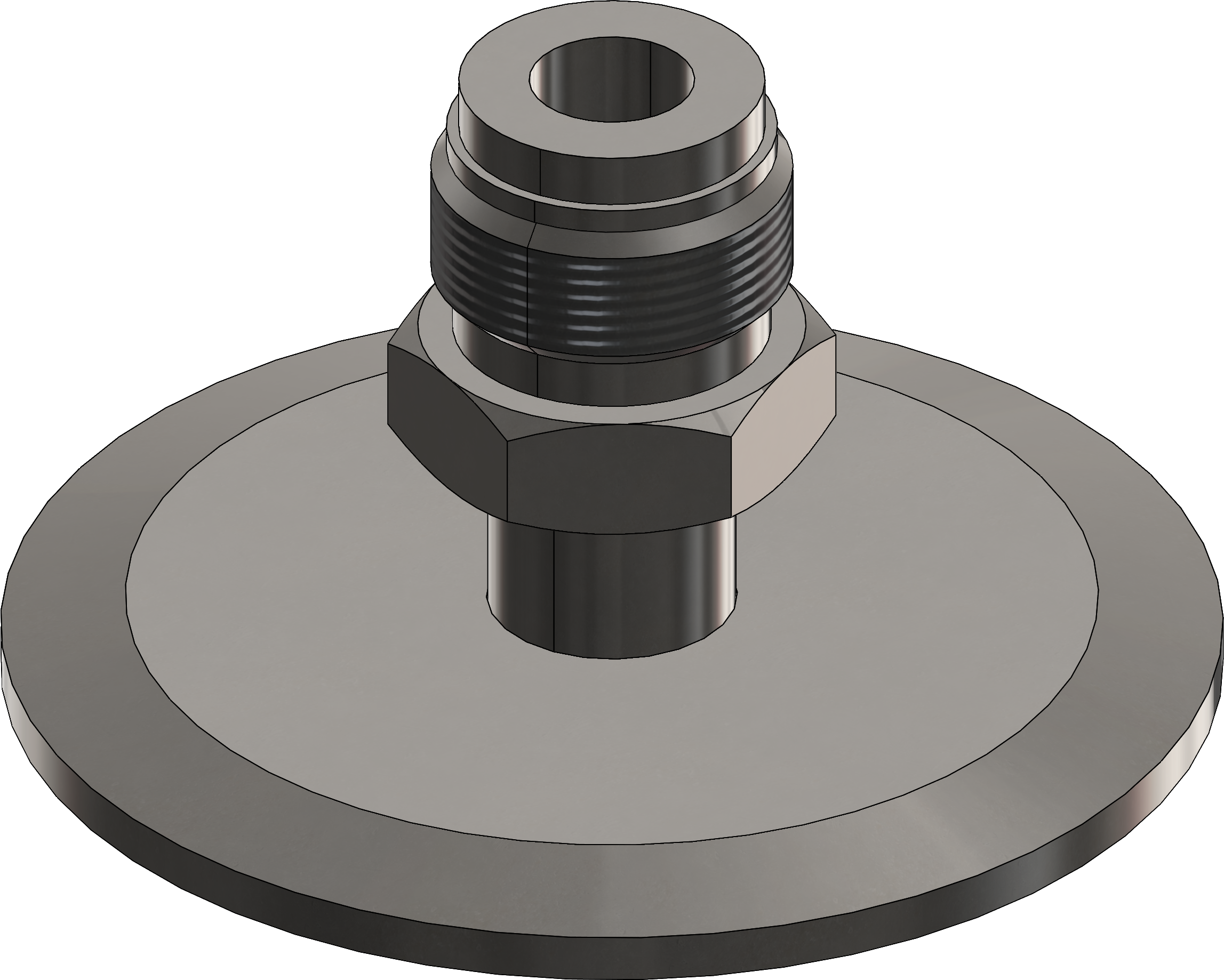

KF face seal male adapterS
HIS KF components are designed to ISO specifications and are made of 304 stainless steel (316/316L available upon request). Standard matte finish.
Measurements are listed in inches (mm).
| Part No. | Flange Size | Face Seal Size | A |
|---|---|---|---|
| VC-KF-16BB04FSM | 0.75 (19.1) | 0.25 (6.35) | 1.46 (37.1) |
| VC-KF-16BB08FSM | 0.75 (19.1) | 0.50 (12.7) | 1.65 (41.9) |
| VC-KF-25BB04FSM | 1.00 (25.4) | 0.25 (6.35) | 1.46 (37.1) |
| VC-KF-25BB08FSM | 1.00 (25.4) | 0.50 (12.7) | 1.65 (41.9) |
| VC-KF-40BB04FSM | 1.50 (38.1) | 0.25 (6.35) | 1.46 (37.1) |
| VC-KF-40BB08FSM | 1.50 (38.1) | 0.50 (12.7) | 1.65 (41.9) |
| VC-KF-50BB04FSM | 2.00 (50.8) | 0.25 (6.35) | 1.46 (37.1) |
| VC-KF-50BB08FSM | 2.00 (50.8) | 0.50 (12.7) | 1.65 (41.9) |
