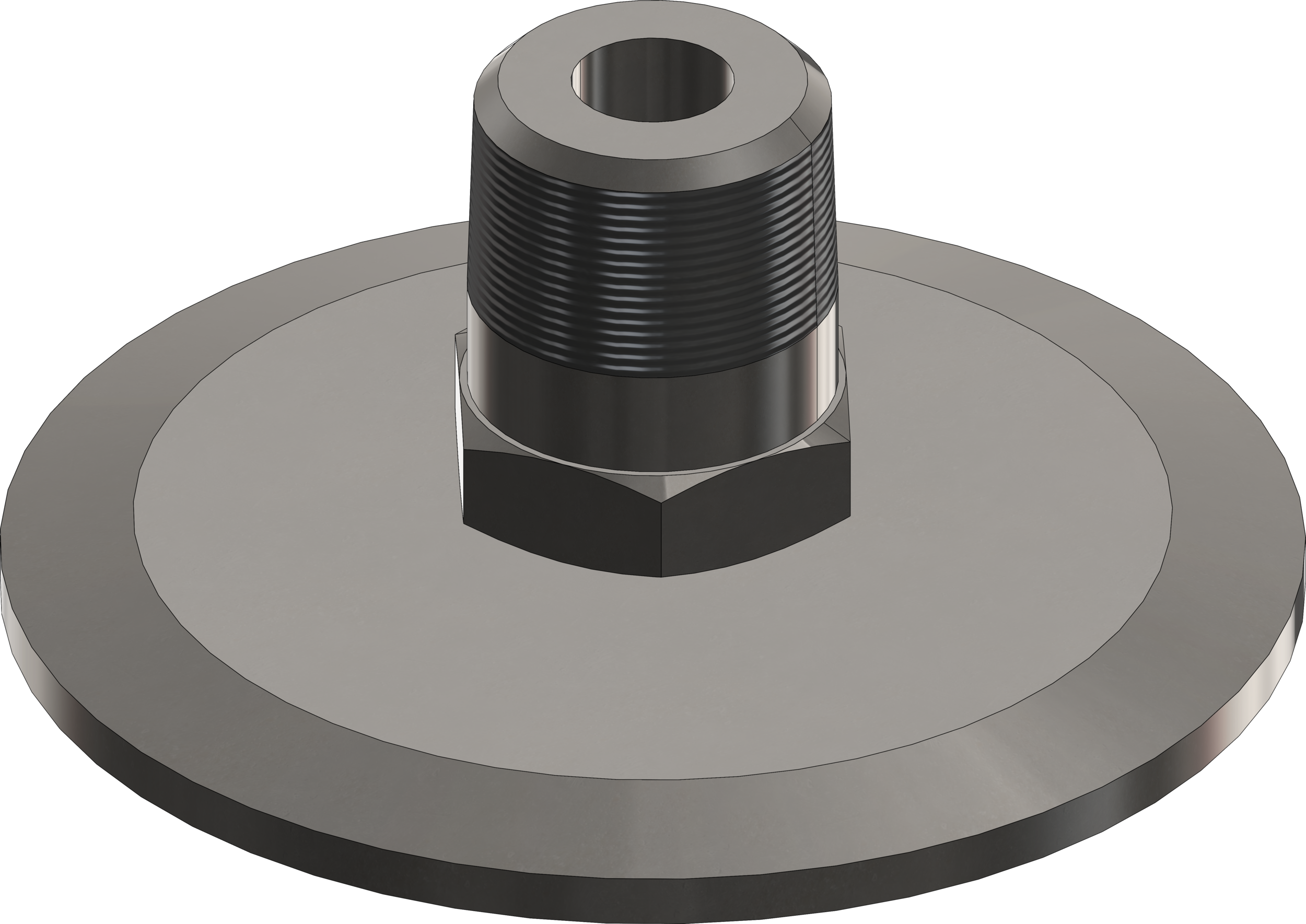

KF-npt male adapter
HIS KF components are designed to ISO specifications and are made of 304 stainless steel (316/316L available upon request). Standard matte finish.
Measurements are listed in inches (mm). Custom sizes available upon request.
| Part No. | Flange Size | NPT | A |
|---|---|---|---|
| VC-KF-16BB02MNPT | 0.75 (19.1) | 0.13 (3.18) | 0.88 (22.4) |
| VC-KF-16BB04MNPT | 0.75 (19.1) | 0.25 (6.35) | 1.09 (27.7) |
| VC-KF-25BB04MNPT | 1.00 (25.4) | 0.25 (6.35) | 1.09 (27.7) |
| VC-KF-40BB04MNPT | 1.50 (38.1) | 0.25 (6.35) | 1.09 (27.7) |
| VC-KF-40BB08MNPT | 1.50 (38.1) | 0.50 (12.7) | 1.34 (34) |
| VC-KF-50BB04MNPT | 2.00 (50.8) | 0.25 (6.35) | 1.09 (27.7) |
| VC-KF-50BB08MNPT | 2.00 (50.8) | 0.50 (12.7) | 1.34 (34) |
