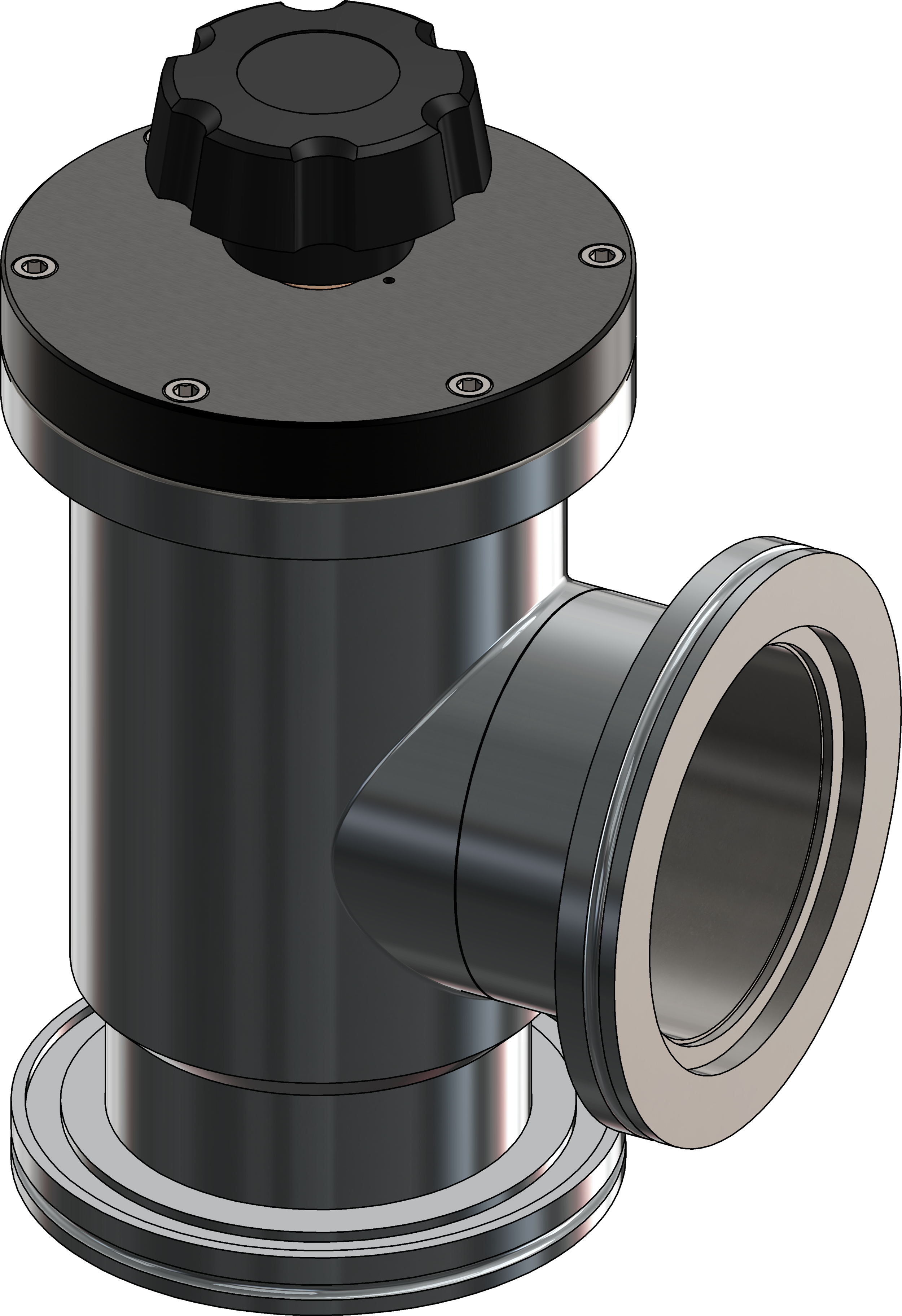

manually operated RIGHT ANGLE - ISO FLANGE
Specifications
Polished 304 stainless steel
Self lubricating bronze nut
Bakeable to 150° C
Viton Seal Bonnet: 10^(-9) Torr vacuum rotating KF, ISO, and CF flanges
Measurements are listed in inches.
Part No. | Tube O.D. | A | B | C | D |
---|---|---|---|---|---|
VC-AV-ISO63M | 2.500 | 4.000 | 3.250 | 8.600 | 11.200 |
VC-AV-ISO80M | 3.000 | 4.500 | 3.500 | 8.920 | 11.280 |
