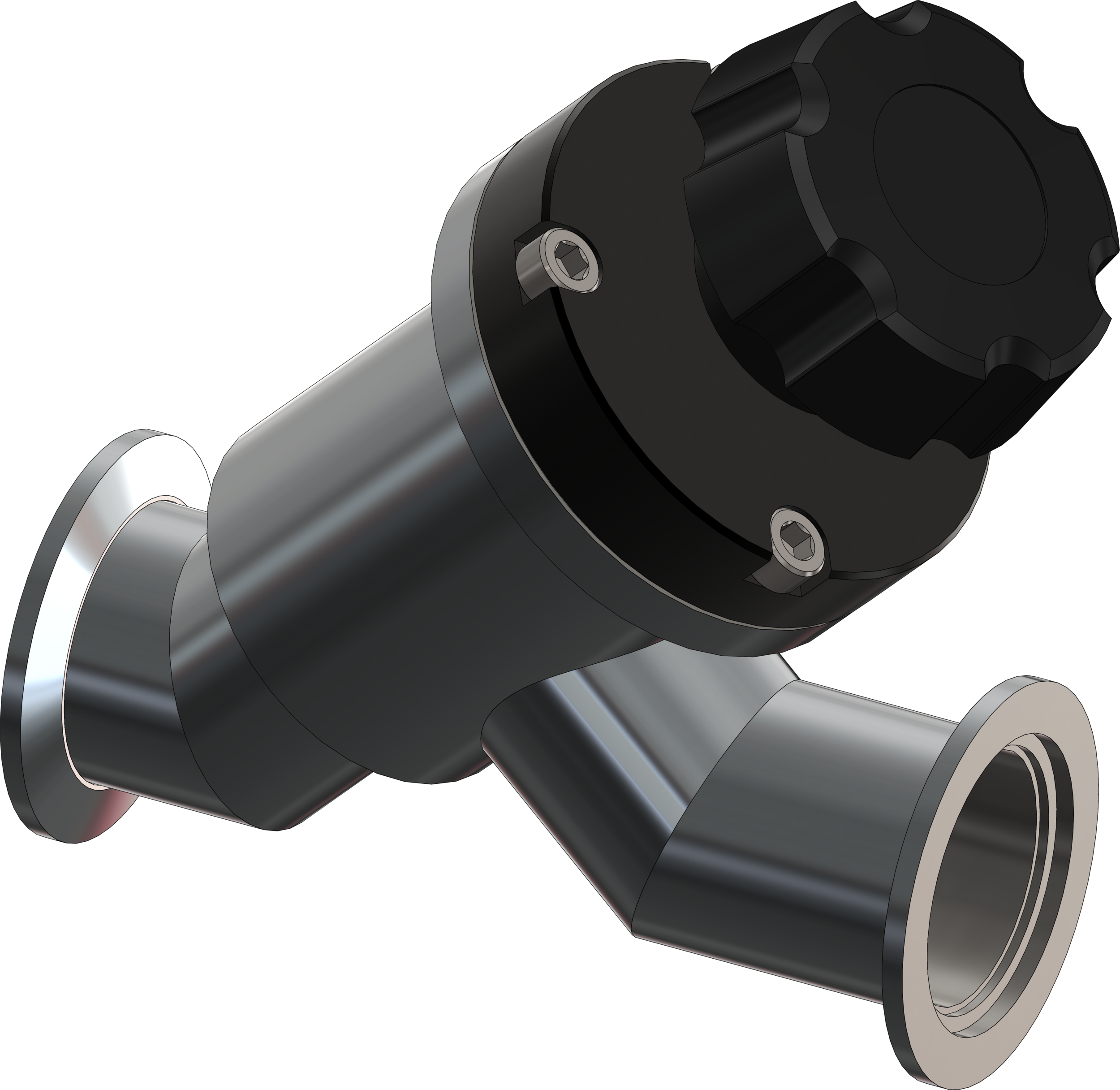

manually operated with bellows Y-inline - KF FLANGE
Specifications
Polished 304 stainless steel body
Self lubricating bronze nut
Bakeable to 150° C
Viton seal bonnet: 10^(-9) Torr
Measurements are listed in inches.
| Part No. | Tube O.D. | A | B | C | D |
|---|---|---|---|---|---|
| VC-AI-KF16M | 0.750 | 4.000 | 2.250 | 3.910 | 4.430 |
| VC-AI-KF25M | 1.000 | 4.200 | 2.250 | 3.820 | 4.340 |
| VC-AI-KF40M | 1.500 | 5.120 | 3.000 | 5.310 | 6.180 |
| VC-AI-KF50M | 2.000 | 7.000 | 3.500 | 5.300 | 6.550 |
