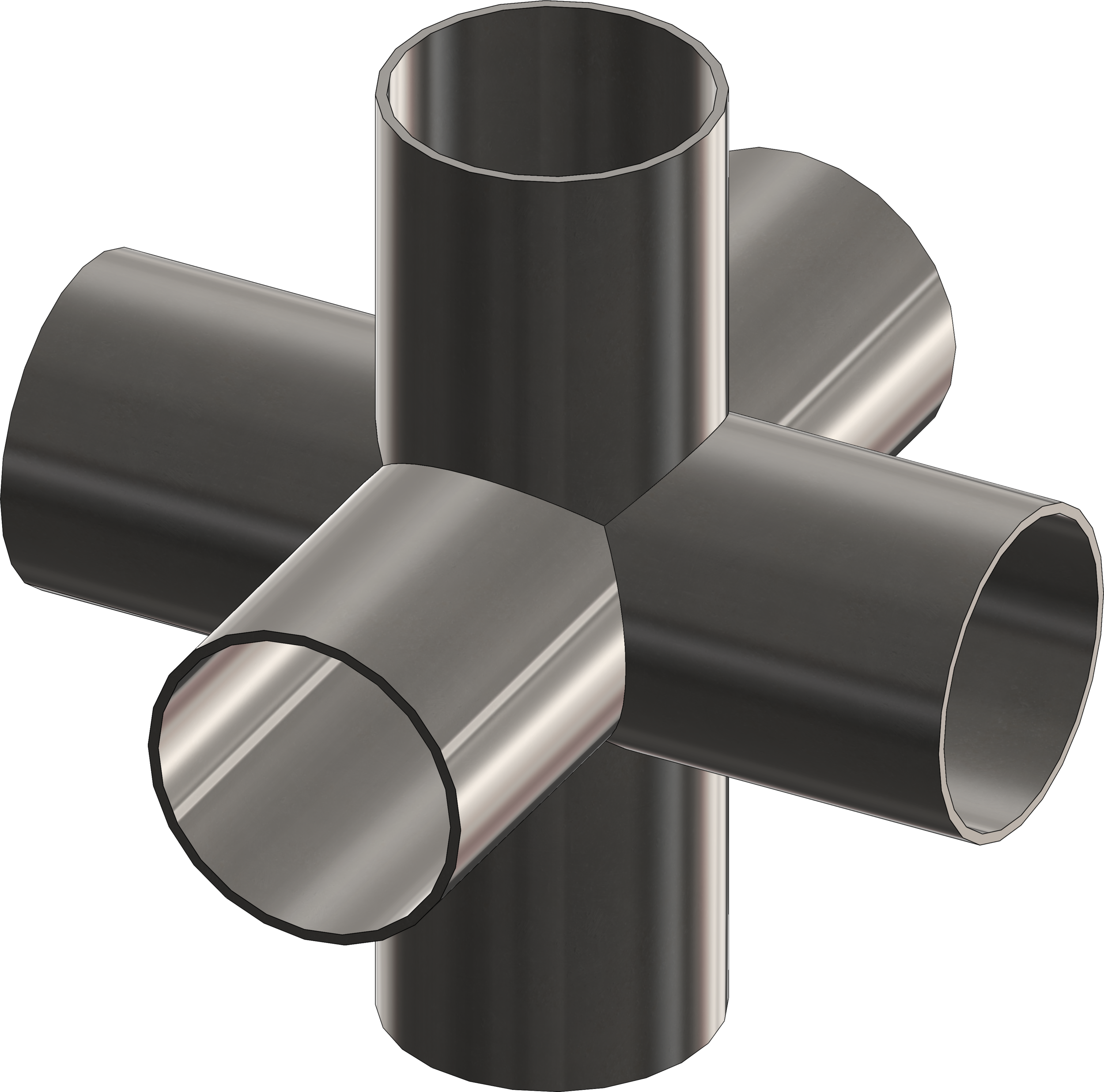

WF 6-way cross
HIS weld fittings conform to ASTM A-269 and ASME standards, with qualified ASME welders and procedures to provide the best weld. Fittings are made of 304 stainless steel, but 316/316L is available upon request.
FINISH
Standard finish for fittings is Mill Finish; other finishes available upon request. Add number/letter to the end of the part number to specify the finish. M = Mill finish, 7 = #7 polish OD/ID.
Measurements are listed in inches (mm).
| Part No. | Tube Size | A | Wall |
|---|---|---|---|
| WF-12-12CS3046WYM | 0.75 (19.1) | 1.00 (25.4) | 0.065 (1.7) |
| WF-16-16CS3046WYM | 1.00 (25.4) | 1.88 (47.8) | 0.065 (1.7) |
| WF-18-18CS3046WYM | 1.50 (38.1) | 2.25 (57.2) | 0.065 (1.7) |
| WF-20-20CS3046WYM | 2.00 (50.8) | 3.00 (76.2) | 0.065 (1.7) |
| WF-25-25CS3046WYM | 2.50 (63.5) | 3.00 (76.2) | 0.065 (1.7) |
| WF-30-30CS3046WYM | 3.00 (76.2) | 3.25 (82.6) | 0.065 (1.7) |
| WF-40-40CS3046WYM | 4.00 (101.6) | 3.88 (98.6) | 0.083 (2.1) |
| WF-60-60CS3046WYM | 6.00 (152.4) | 5.00 (127) | 0.083 (2.1) |
