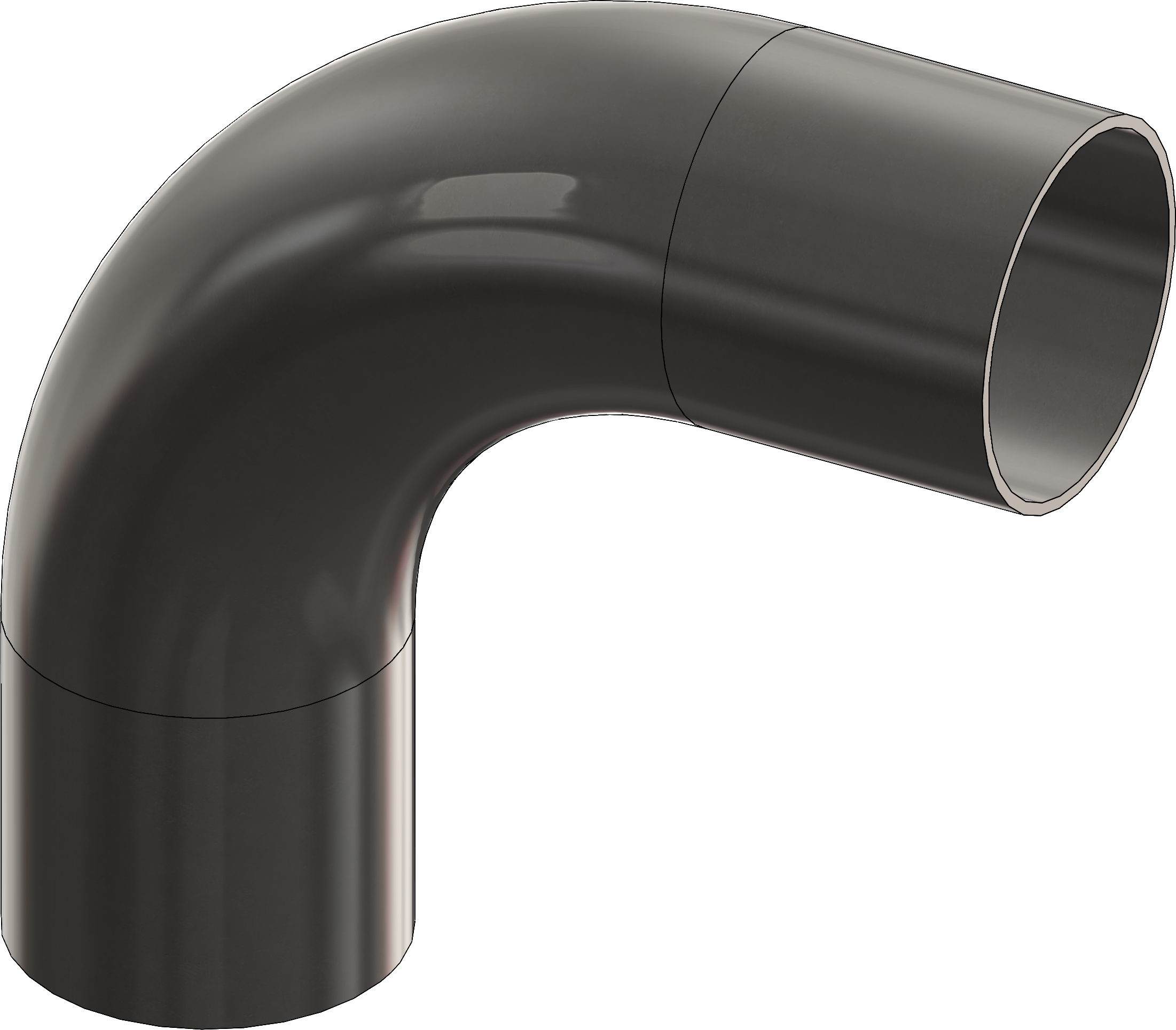

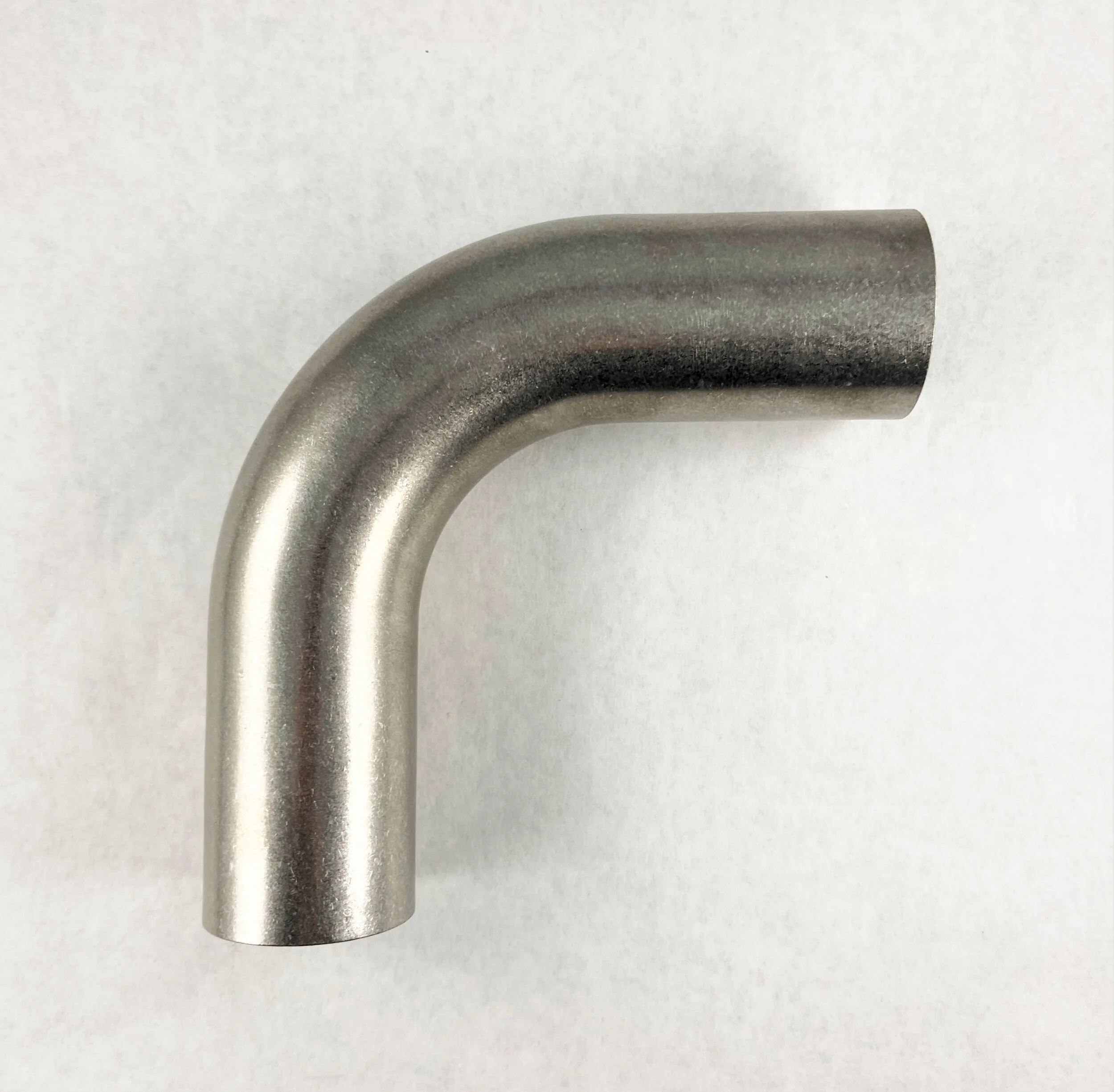

WF 90° elbow with extended tangents, TYPE 3
HIS weld fittings conform to ASTM A-269 and ASME standards, with qualified ASME welders and procedures to provide the best weld. Only available in 316/316L stainless steel.
FINISH
Standard finish for fittings is Mill Finish; other finishes available upon request. Add number/letter to the end of the part number to specify the finish. M = Mill finish, 7 = #7 polish OD/ID.
Measurements are listed in inches (mm).
| Part No. | Tube Size | A | Wall |
|---|---|---|---|
| WF-08-90EL316T3M | 0.50 (12.7) | 3.00 (76.2) | 0.049 (1.2) |
| WF-12-90EL316T3M | 0.75 (19.1) | 3.00 (76.2) | 0.065 (1.7) |
| WF-16-90EL316T3M | 1.00 (25.4) | 3.00 (76.2) | 0.065 (1.7) |
| WF-18-90EL316T3M | 1.50 (38.1) | 4.50 (114.3) | 0.065 (1.7) |
| WF-20-90EL316T3M | 2.00 (50.8) | 4.75 (120.70) | 0.065 (1.7) |
| WF-25-90EL316T3M | 2.50 (63.5) | 5.19 (131.8) | 0.065 (1.7) |
| WF-30-90EL316T3M | 3.00 (76.2) | 6.31 (160.3) | 0.065 (1.7) |
| WF-40-90EL316T3M | 4.00 (101.6) | 8.32 (211.2) | 0.083 (2.1) |
